S400 S500 Classic /Superlite / MPR / HFT500 magazine kit .177

Fits S400 S500 Classic
S400 S500 Superlite
S400 MPR
HFT500
Magazine kit .177

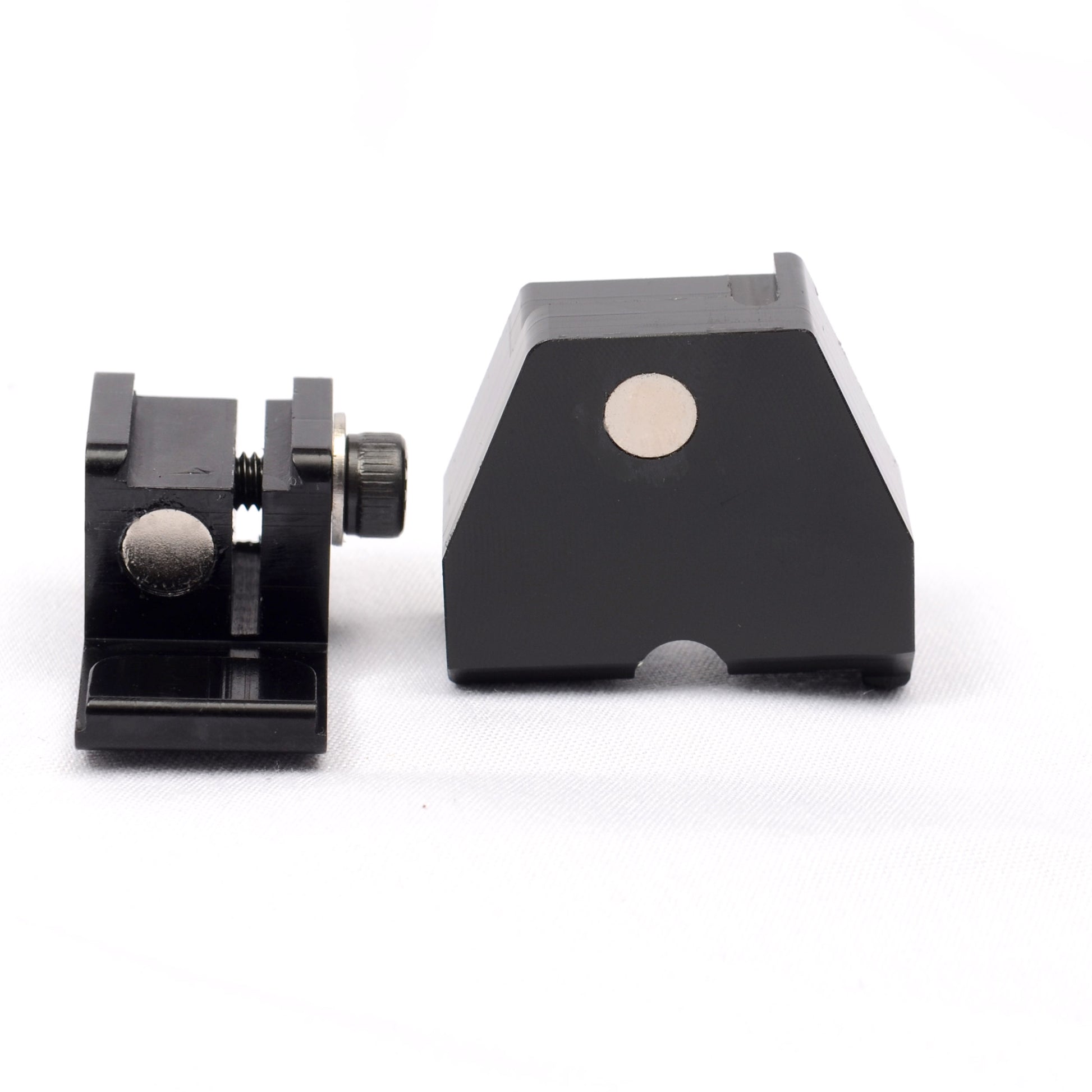

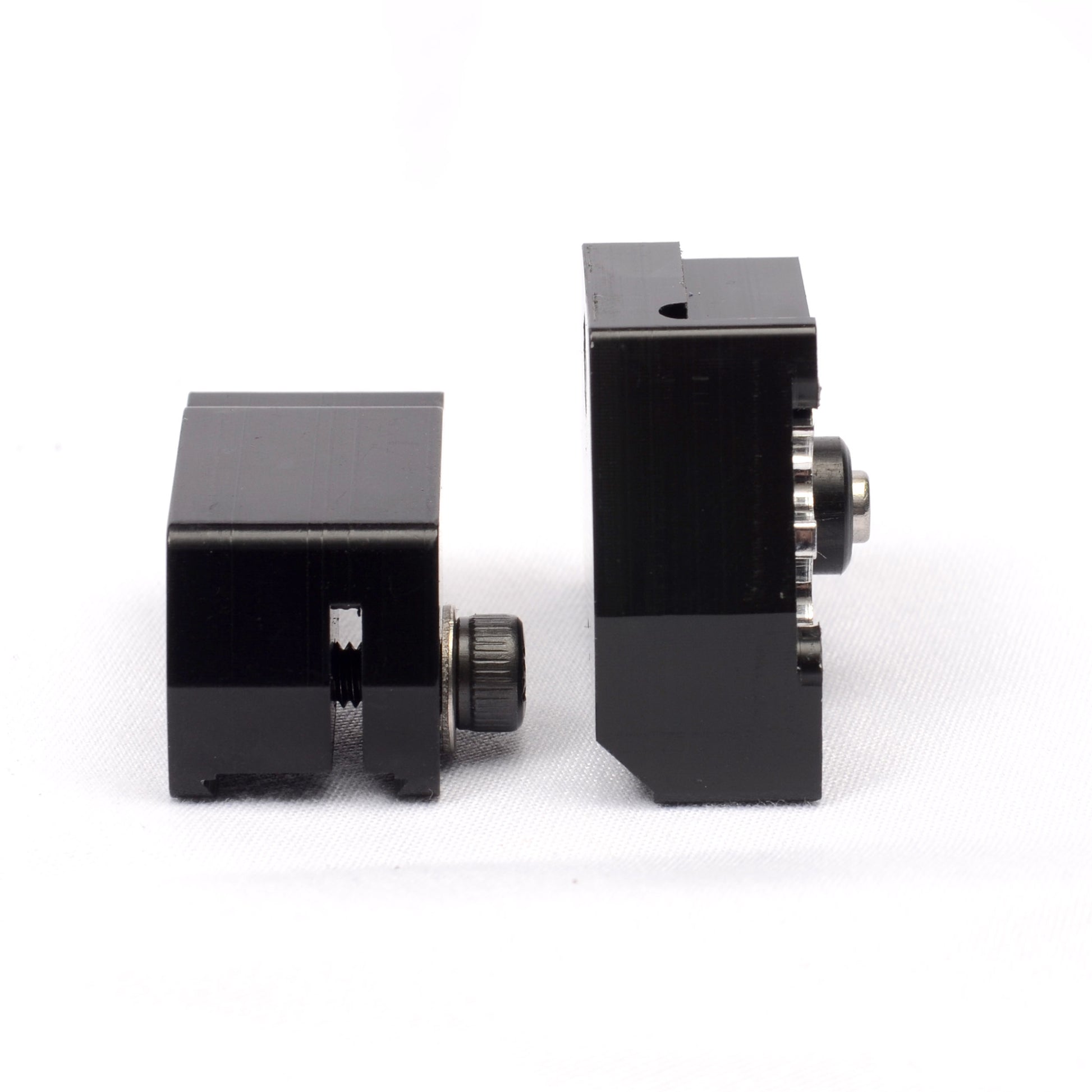

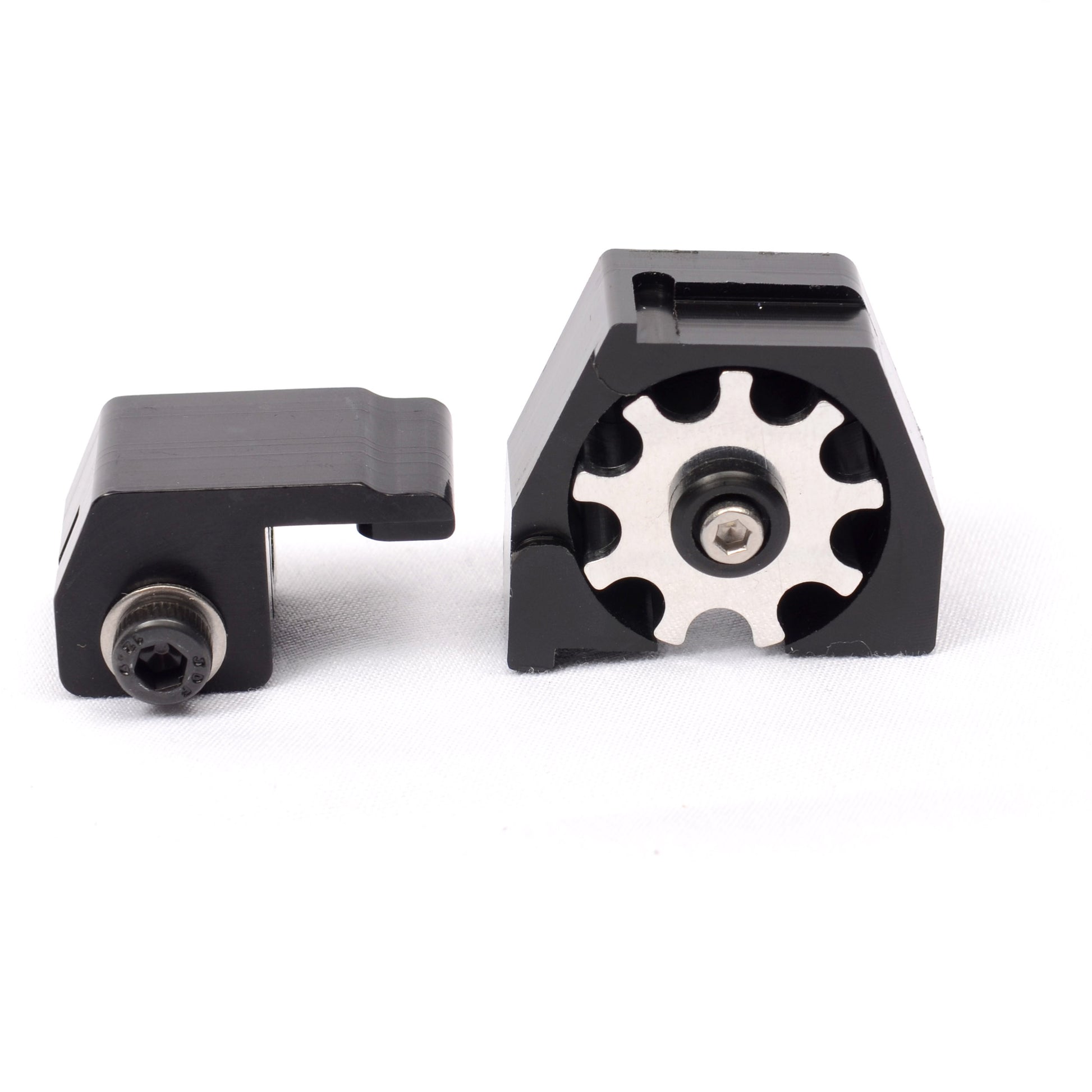

The magazine system comprises of :-
1 x Magazine assembly.
1 x Mounting bracket.
1 x Pellet tray
1 x 3mm allen key
1 x Fitting instructions.

The .177 magazine is compatible with most waisted diablo pellets.
The pellet tray is a formed piece of aluminium that improves the transfer of the pellet in to the .177 breech by the bolt for both single and multi shot configurations.

Notes:
Both bracket types (15.0mm & 13.0mm) will require a minimum of 15.0mm gap between the top of the dovetail and the bottom of your scope.

Bracket Size.
Please check the breech height on your rifle to select the correct bracket size.
The * in the drawing below shows where to measure.
i.e. From the top surface of the dovetail rail vertically downwards to the flat area either side of the pellet groove.

Medium mounts with most types of scope are normally sufficient to clear the fitted bracket.
