S400 S500 Classic /Superlite / MPR / HFT500 magazine kit .22

Fits S400 S500 Classic
S400 S500 Superlite
S400 MPR
HFT500

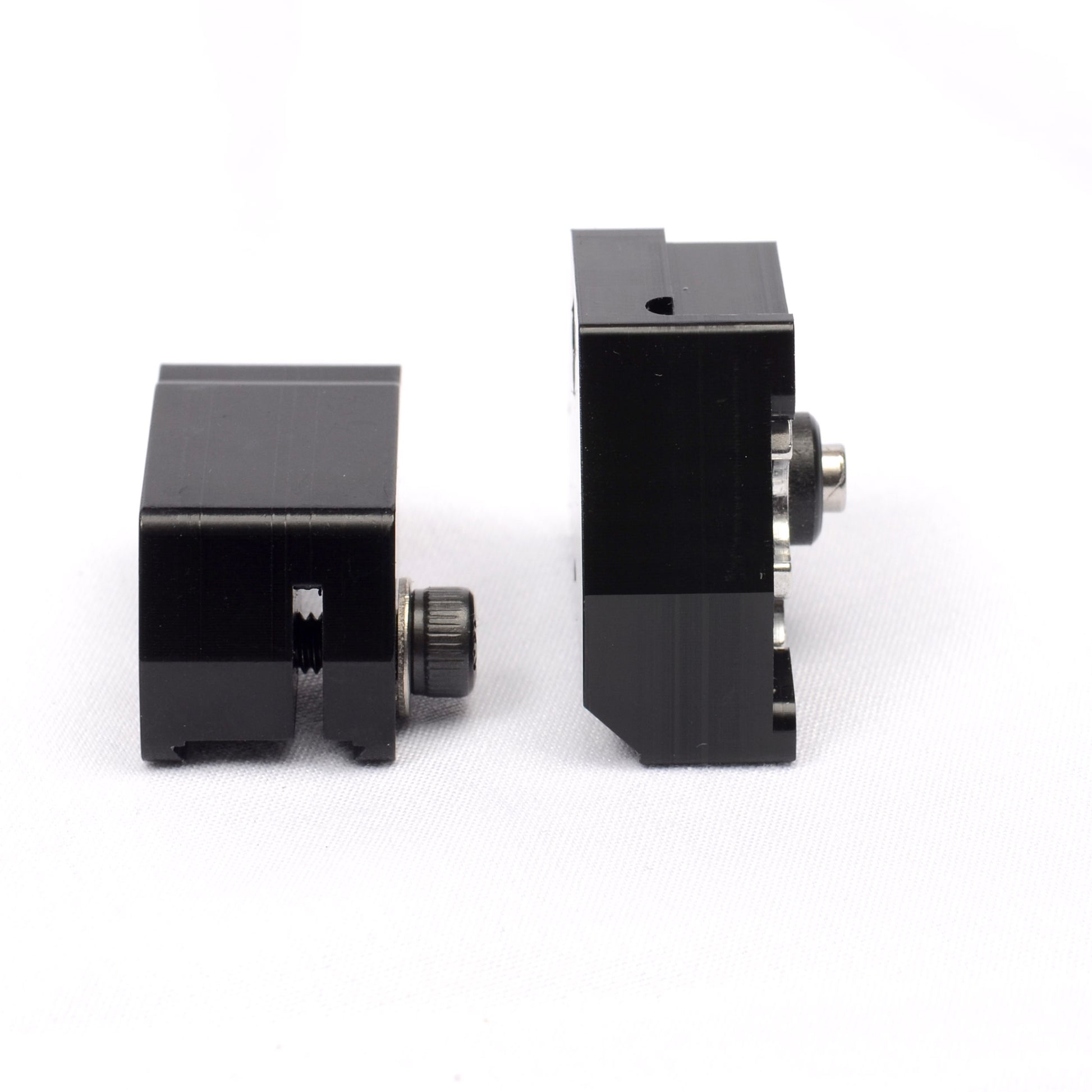

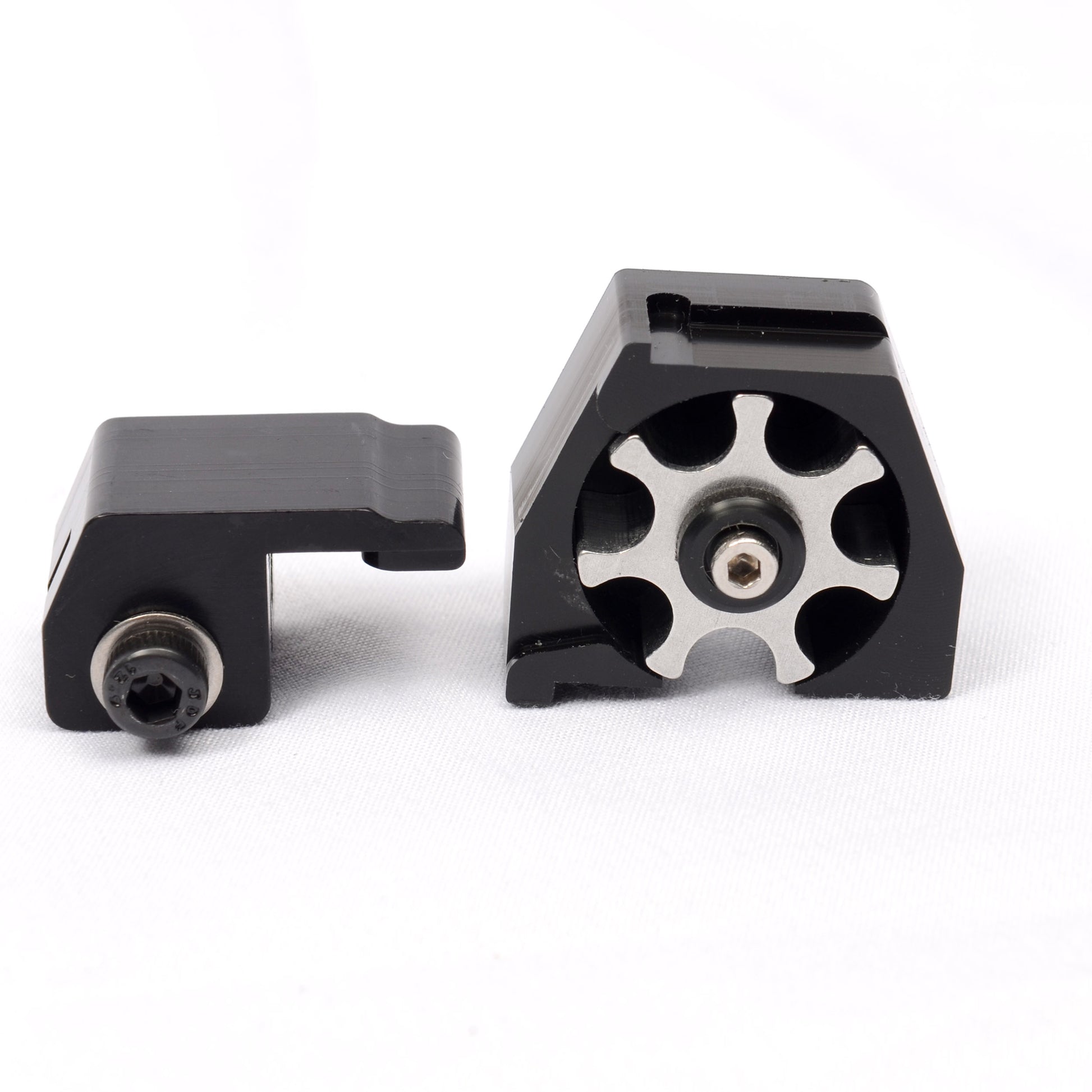

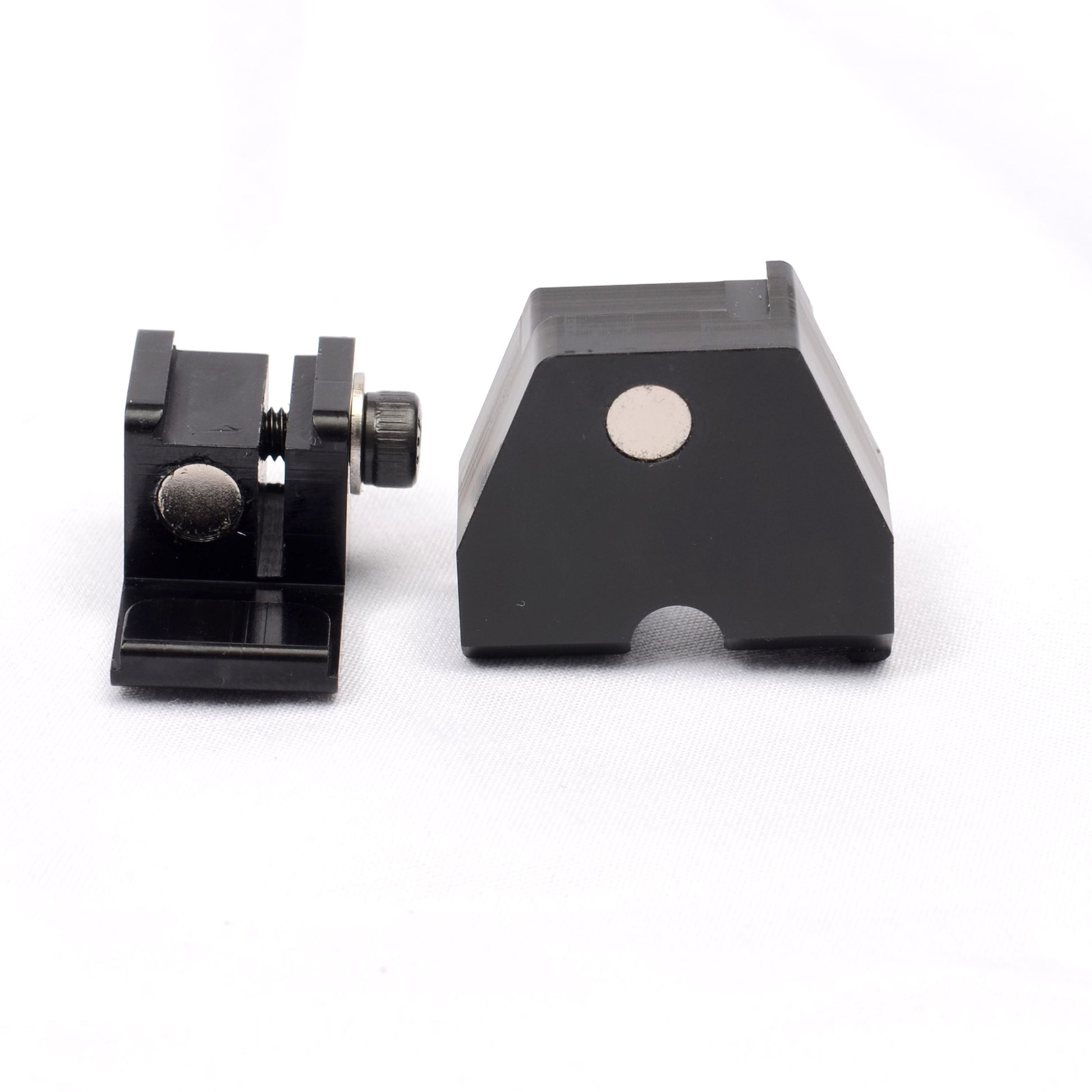

The magazine system comprises of :-
1 x Magazine assembly.
1 x Mounting bracket.
1 x 3mm allen key
1 x Fitting instructions.

Bracket Size.
The .22 magazine will handle most pellets under 8.75mm long.
Notes:
Both bracket types (15.0mm & 13.0mm) will require a minimum of 15.0mm gap between the top of the dovetail and the bottom of your scope.

Please check the breech height on your rifle to select the correct bracket size.
The * in the drawing below shows where to measure.
i.e. From the top surface of the dovetail rail vertically downwards to the flat area either side of the pellet groove.

Medium mounts with most types of scope are normally sufficient to clear the fitted bracket.
