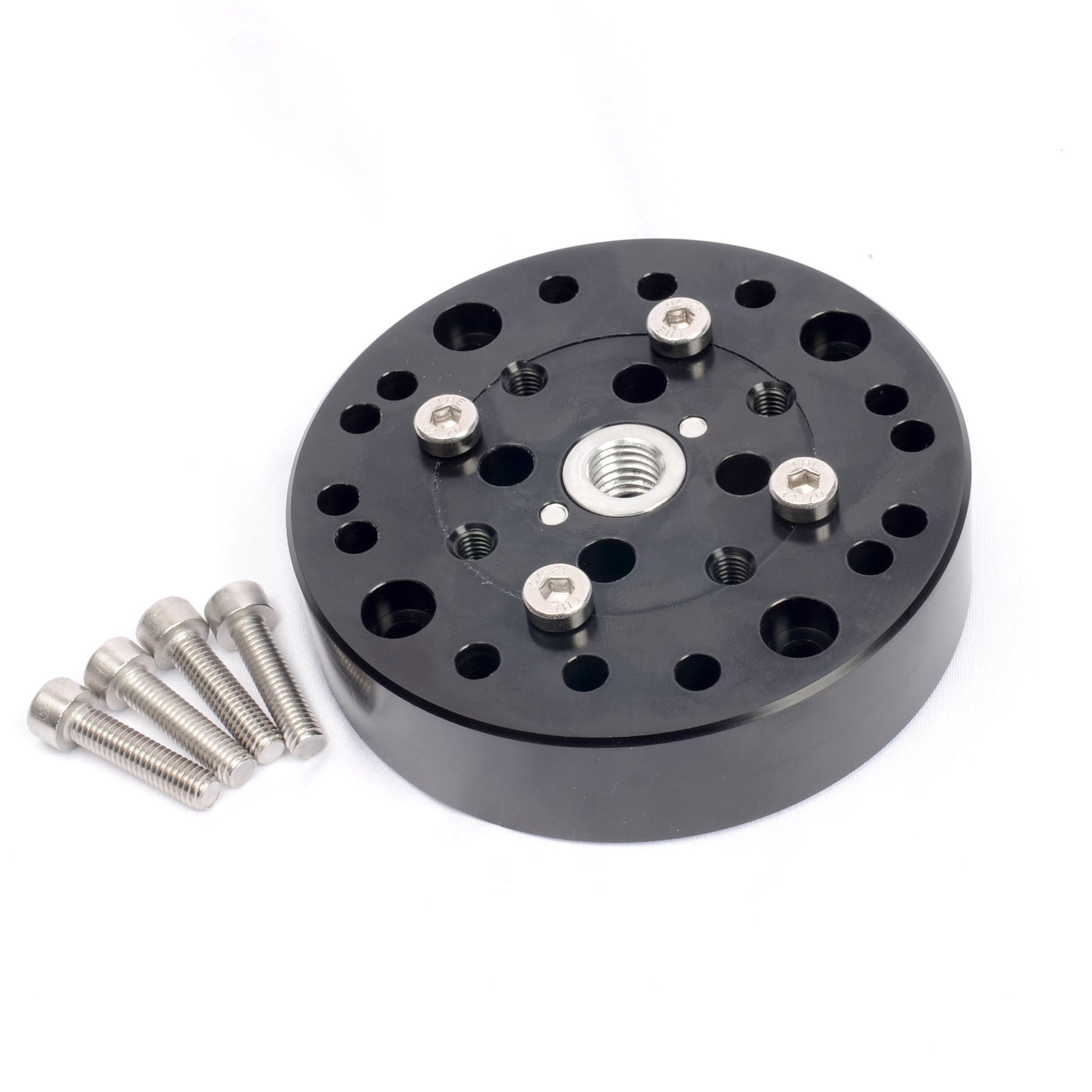

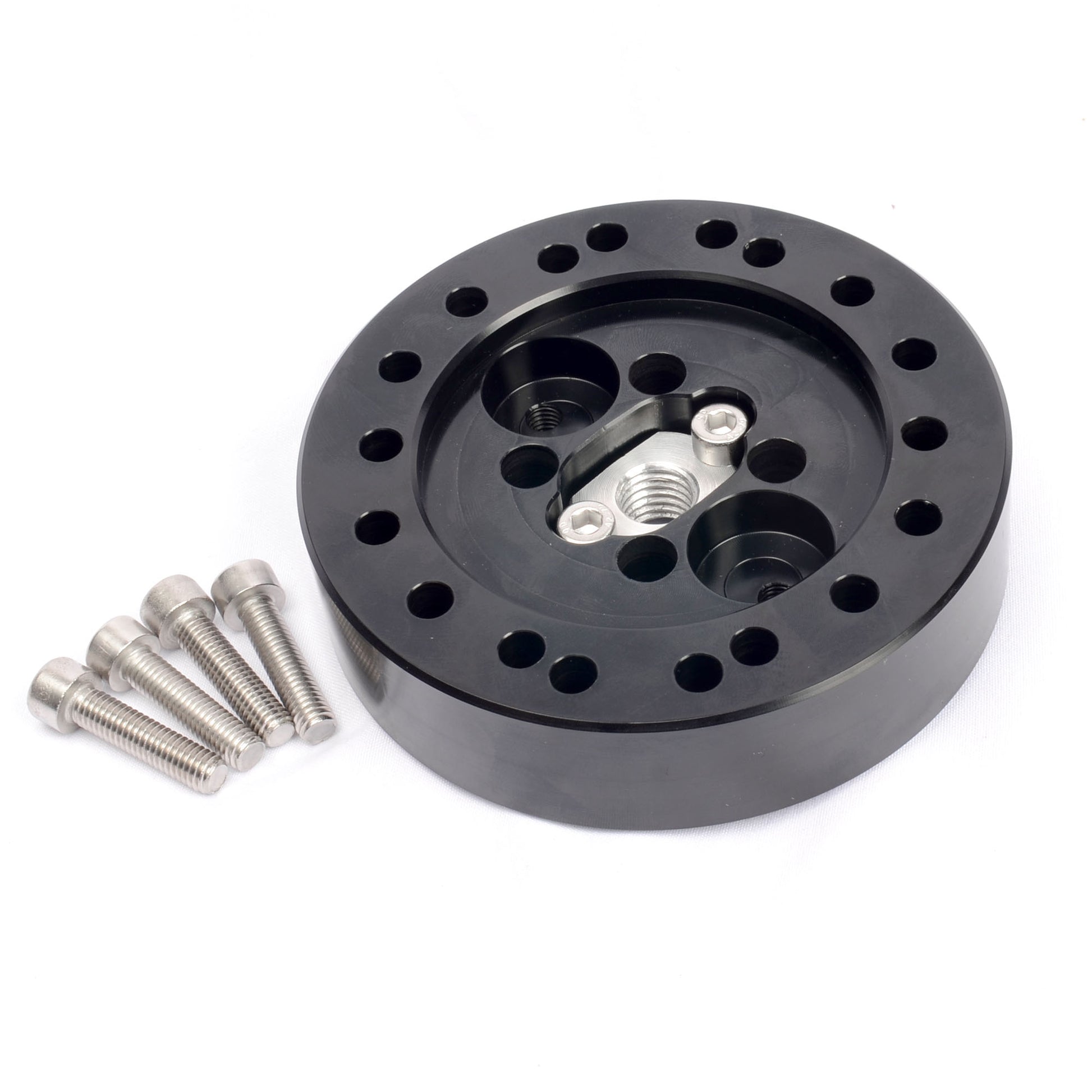

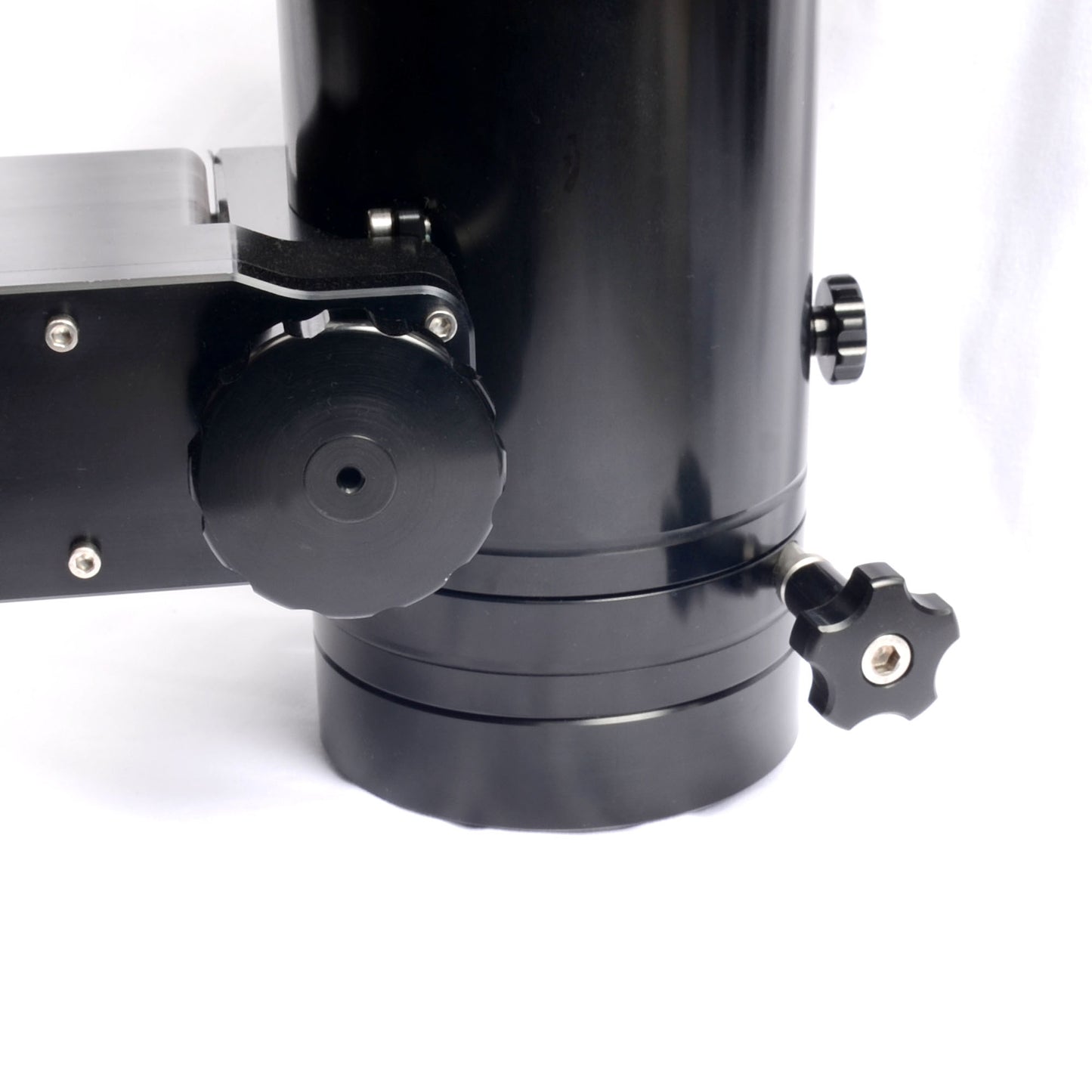

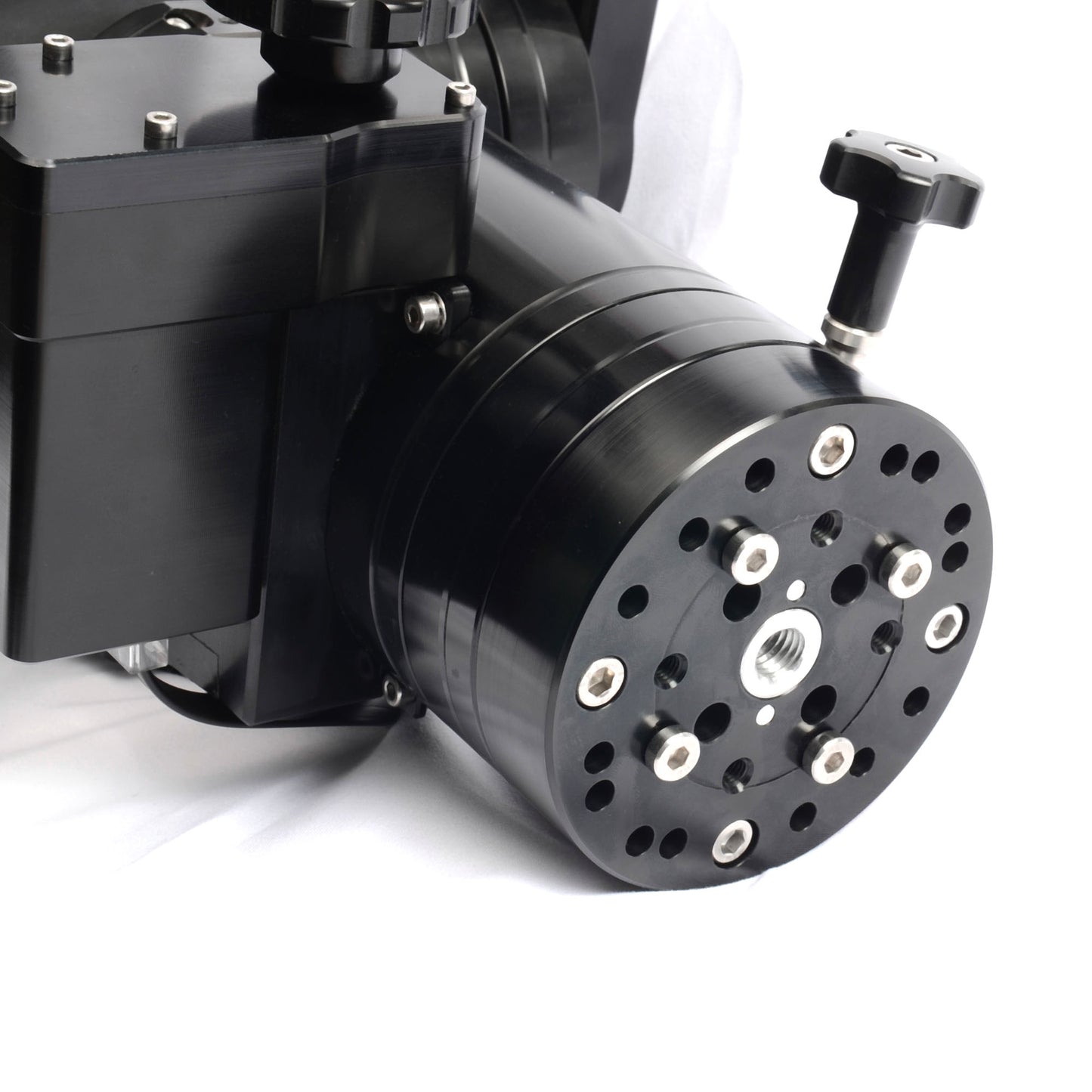

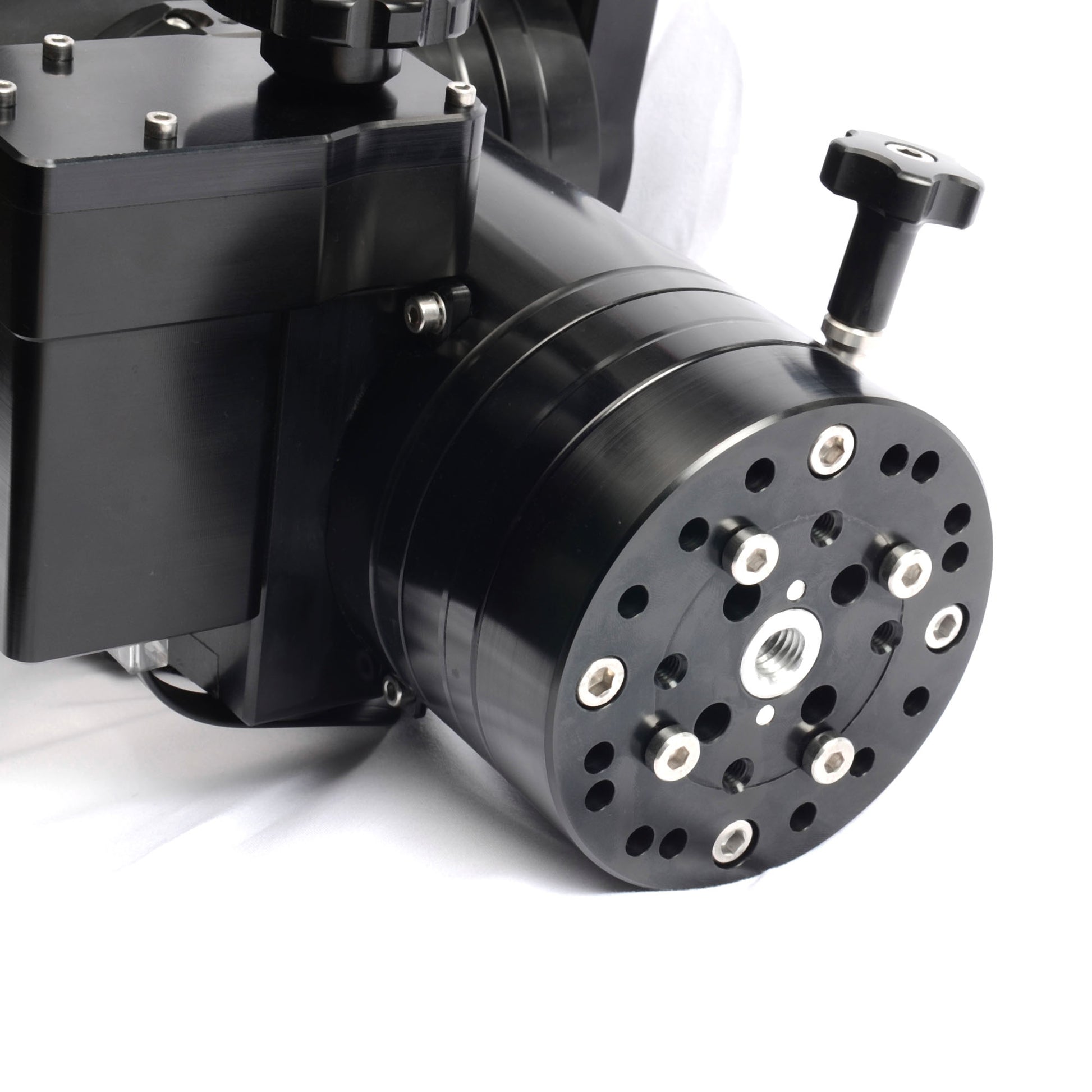

AZ100 Base Adaptor

The adaptor bolts directly to the base of the AZ100 with 4 x M6 bolts and provides a flat 100mm diameter surface.
Adaptor thickness = 24mm.
4xM6 low cap head bolts can be fitted to make a spigot to aid alignment when mounting on popular tripods with 60mm and 65mm diameter recesses.
3/8", M10 and M12 threaded bush options available.
Replacement bushes are also available.

The tripod central bolt must protrude a minimum 10mm above the tripod top face for sufficient thread engagement.

CNC machined and black anodised finished and supplied with stainless steel hardware.
