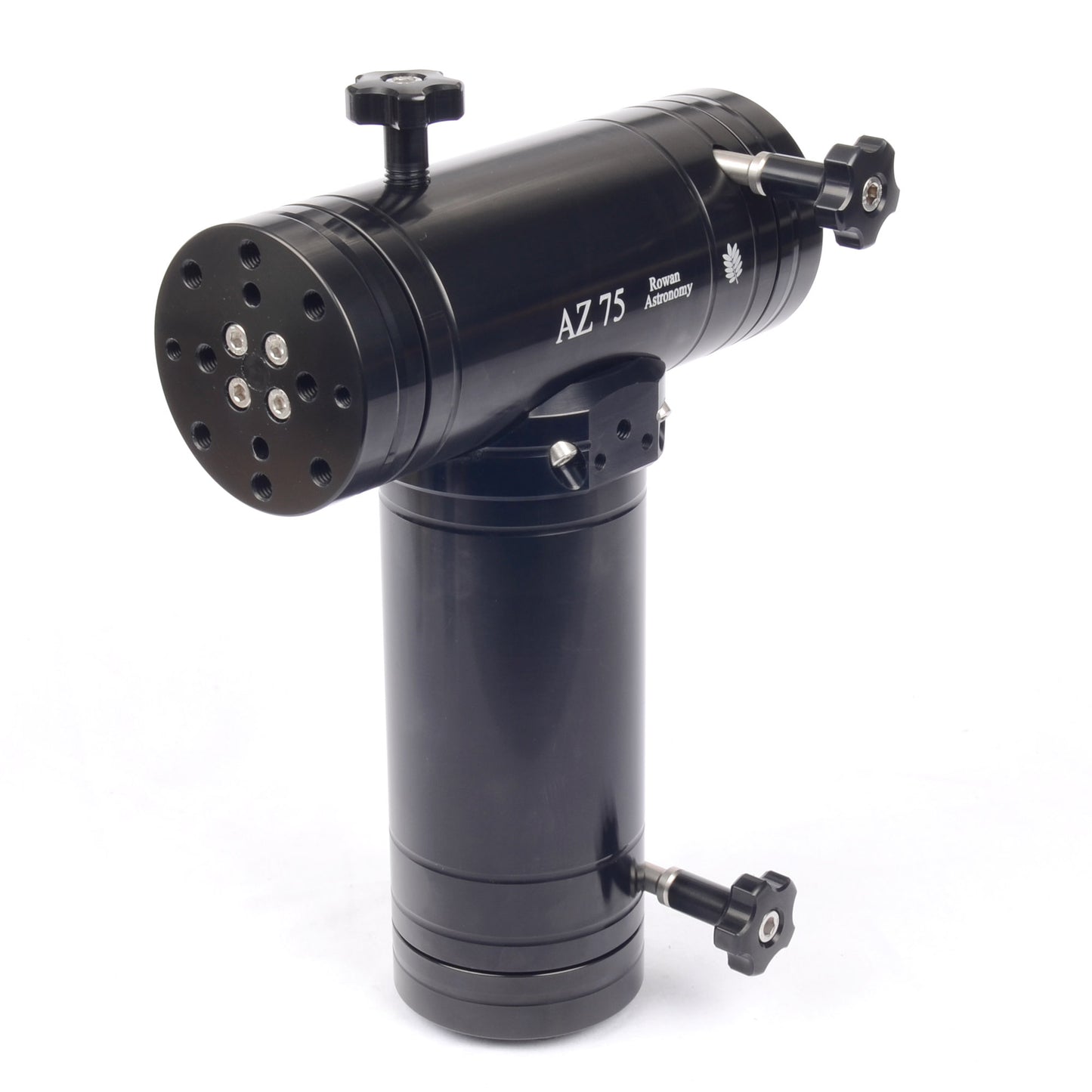

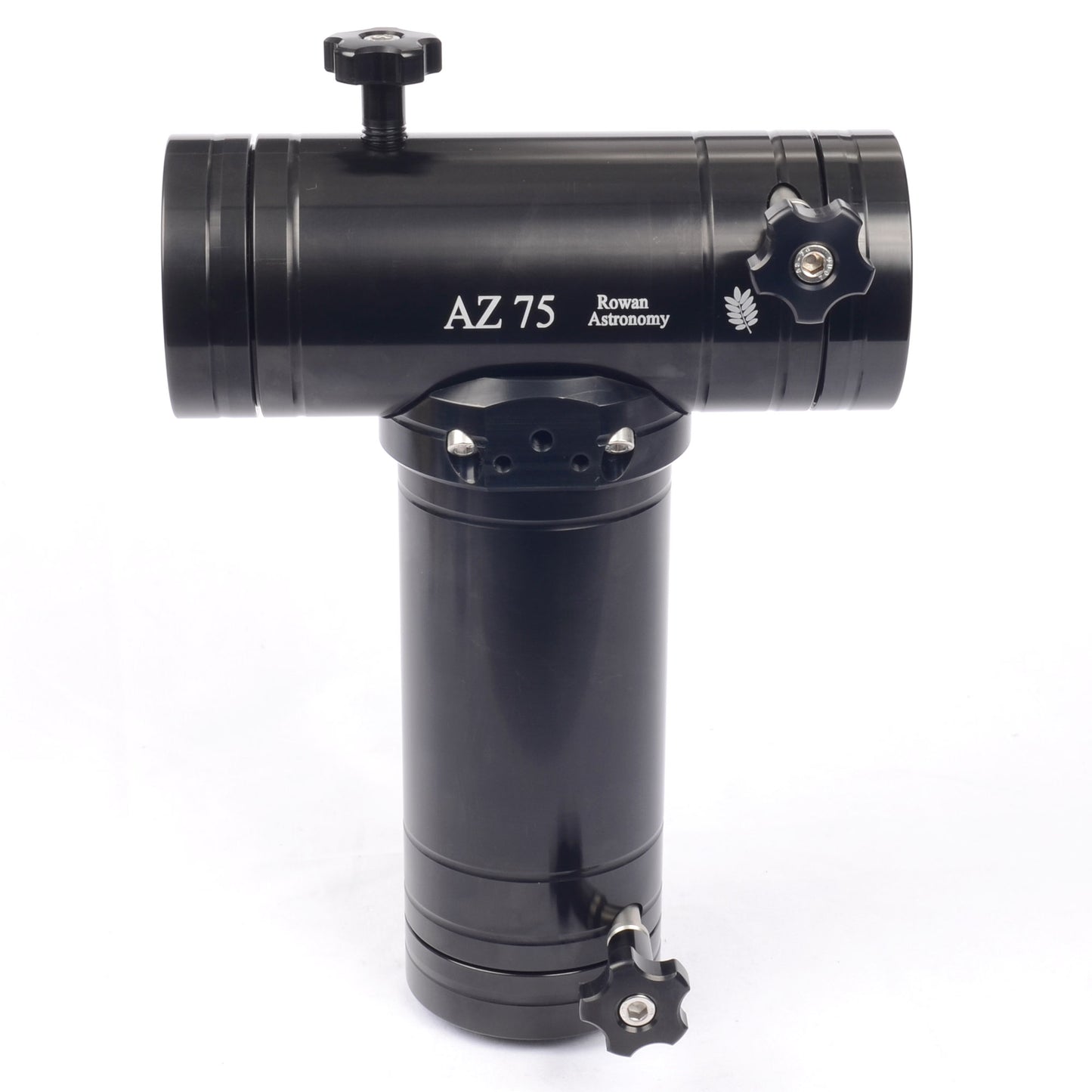

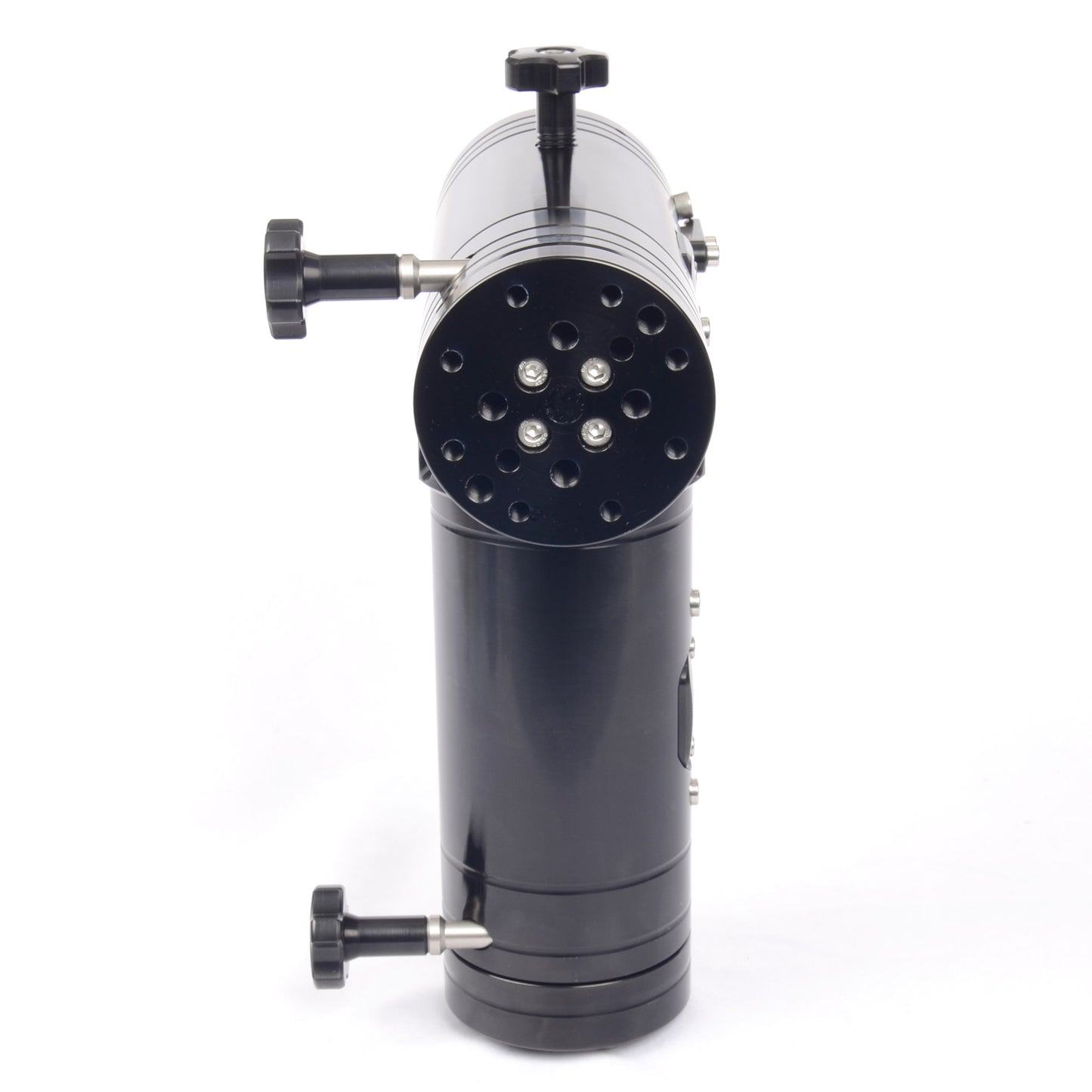

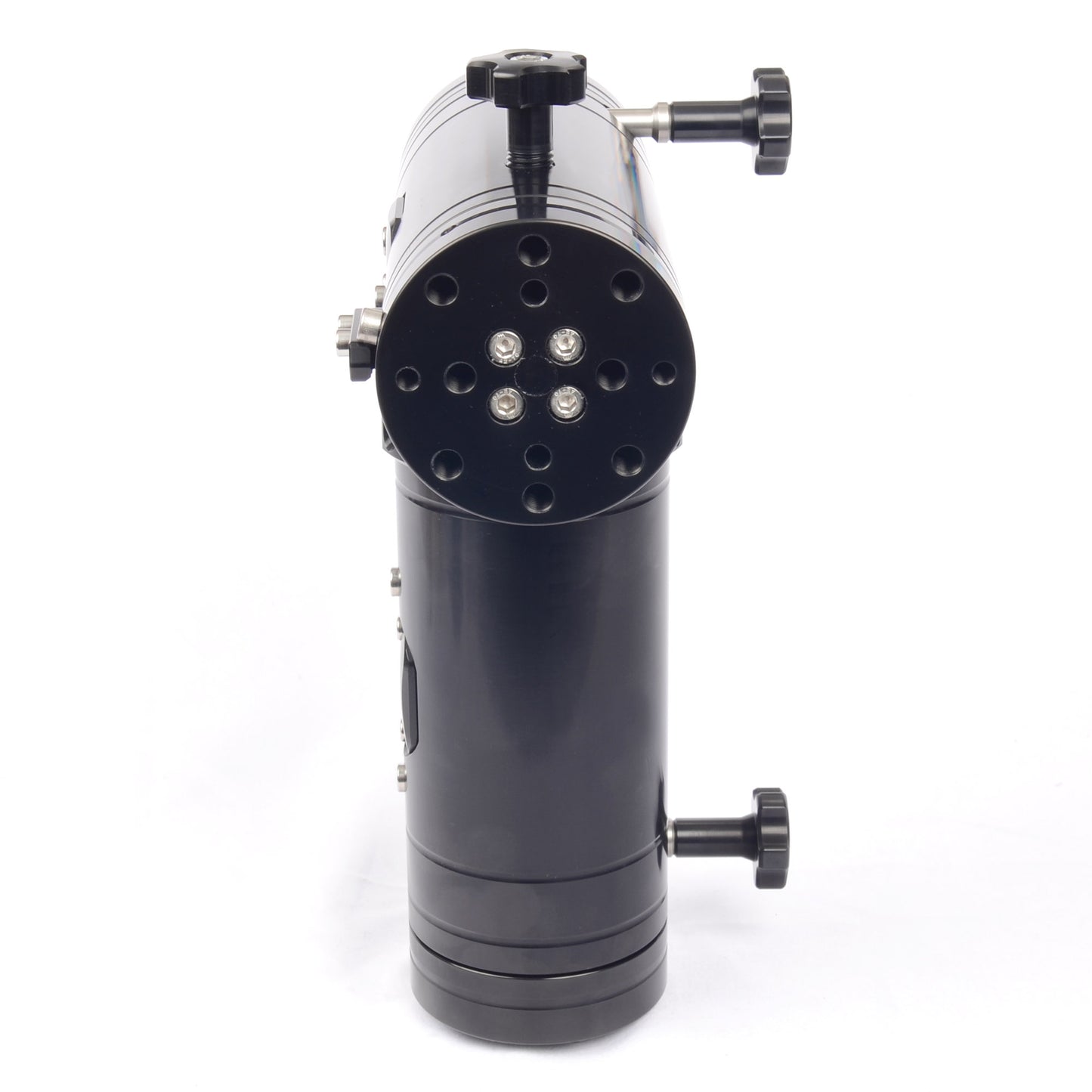

AZ75 Alt-Az Mount With Encoders Fitted.

CNC machined and black anodised finished and fitted with stainless steel hardware.

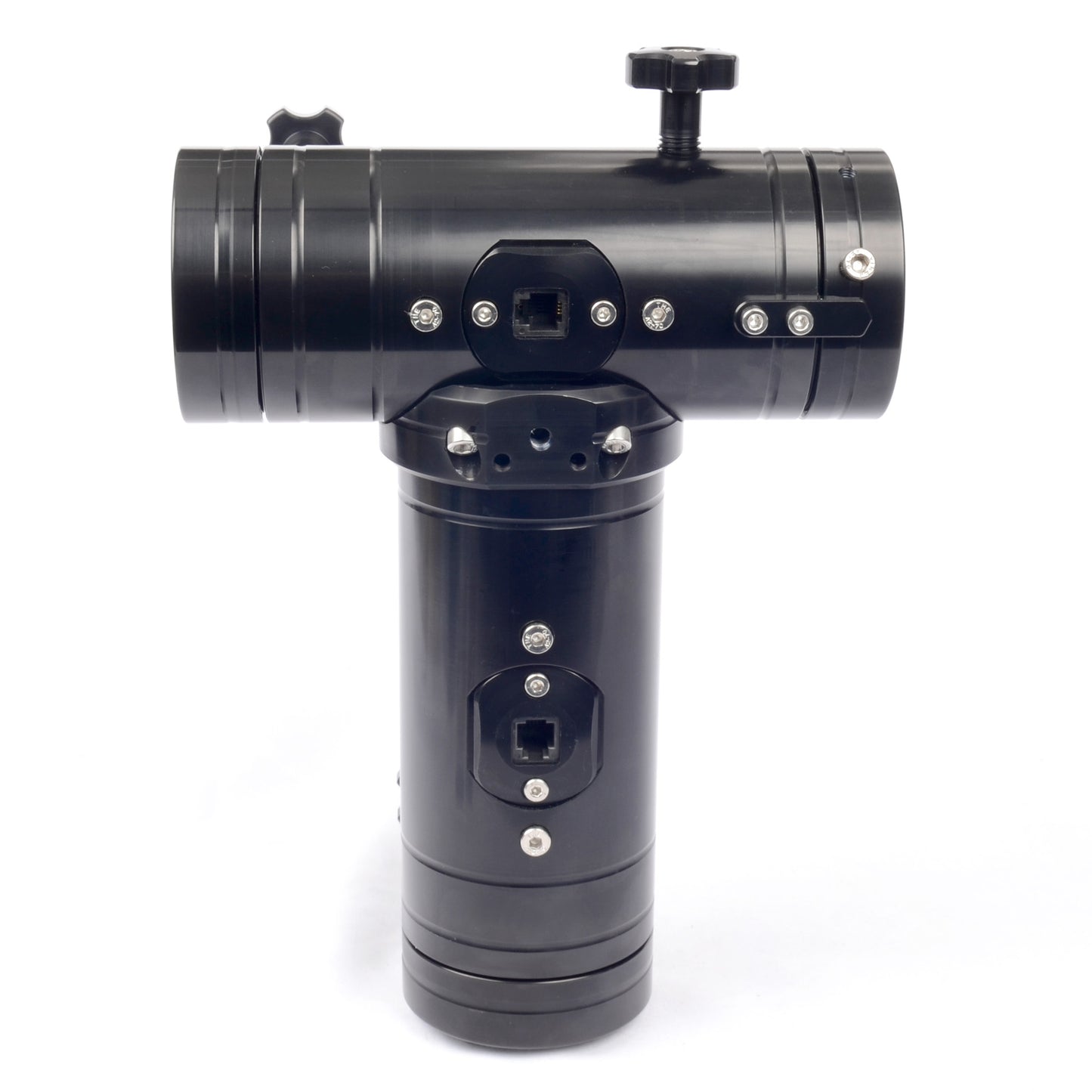

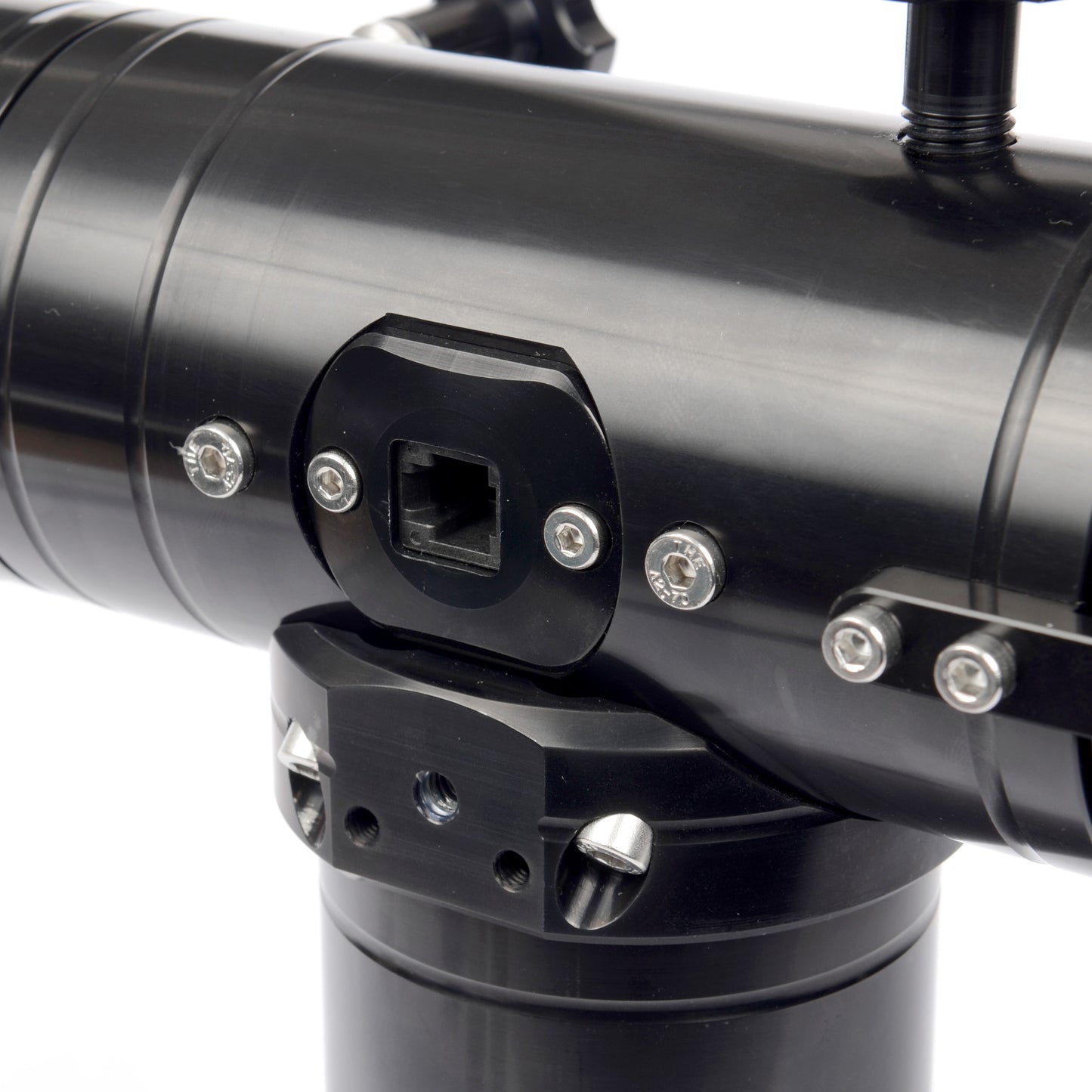

Features include pre-installed Renishaw 128,000 step encoders.

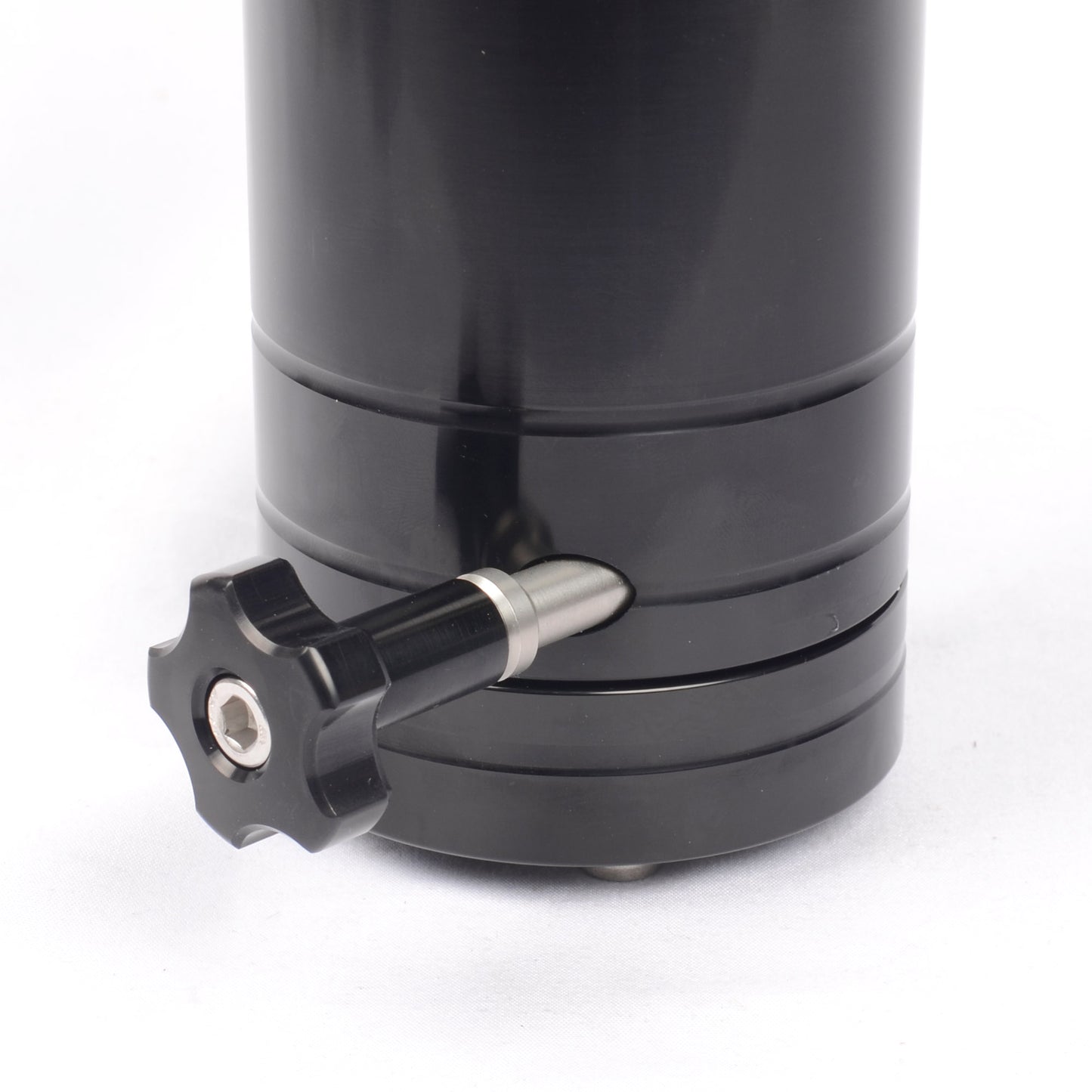

Adjustable friction clutches on both axis for smooth push-to observing.
32mm diameter aluminium axis shafts supported in high quality ball and taper bearings.
Load capacity is 15 kg each side depending on scope length.

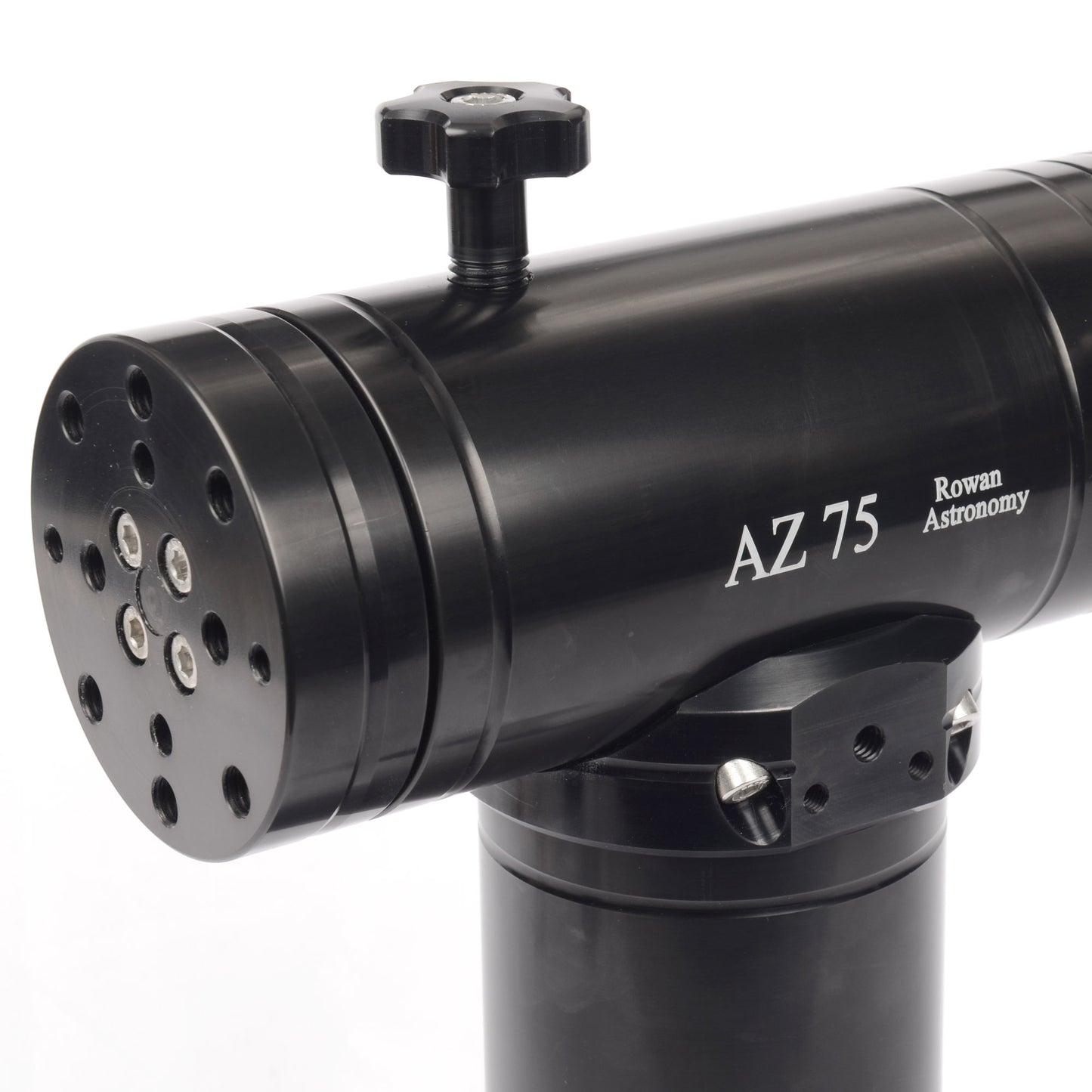

Top elevation axis lock for eyepiece changes.
Mount weight 4.1kg
Mount weight with 2 x V saddles 4.4kg

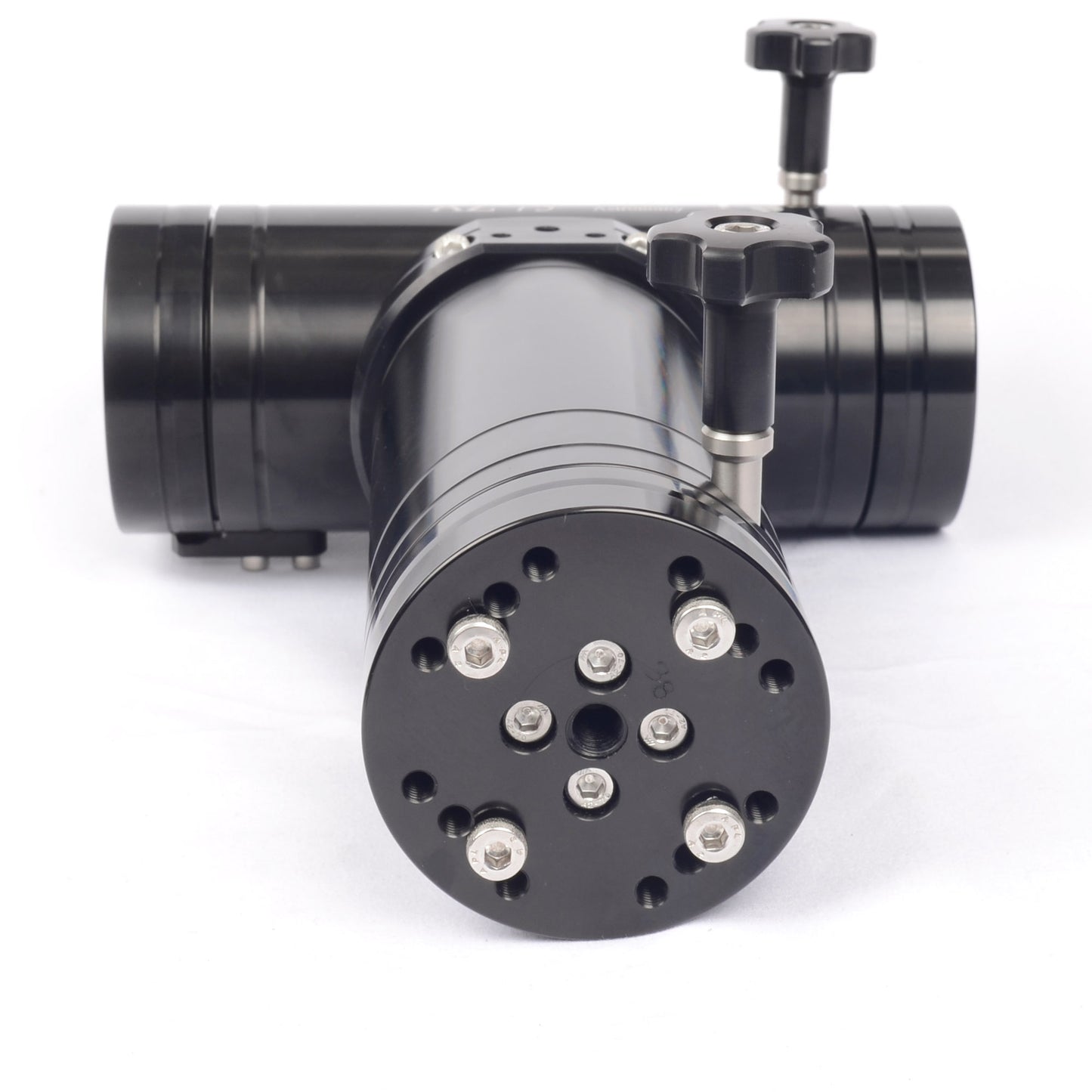

Mount base can be supplied with M12, M10 or 3/8" unc tapped hole to attach to tripods.
AZ75 is compatible with AZ100 saddles.

Options for the base mount.
Nexus DSC Pro with WiFi. DSC shelf.
Compact 'V' section saddle. 170mm long with 2 clamps.
Pan-tilt handle.
Counterweights and counterweight shaft.
