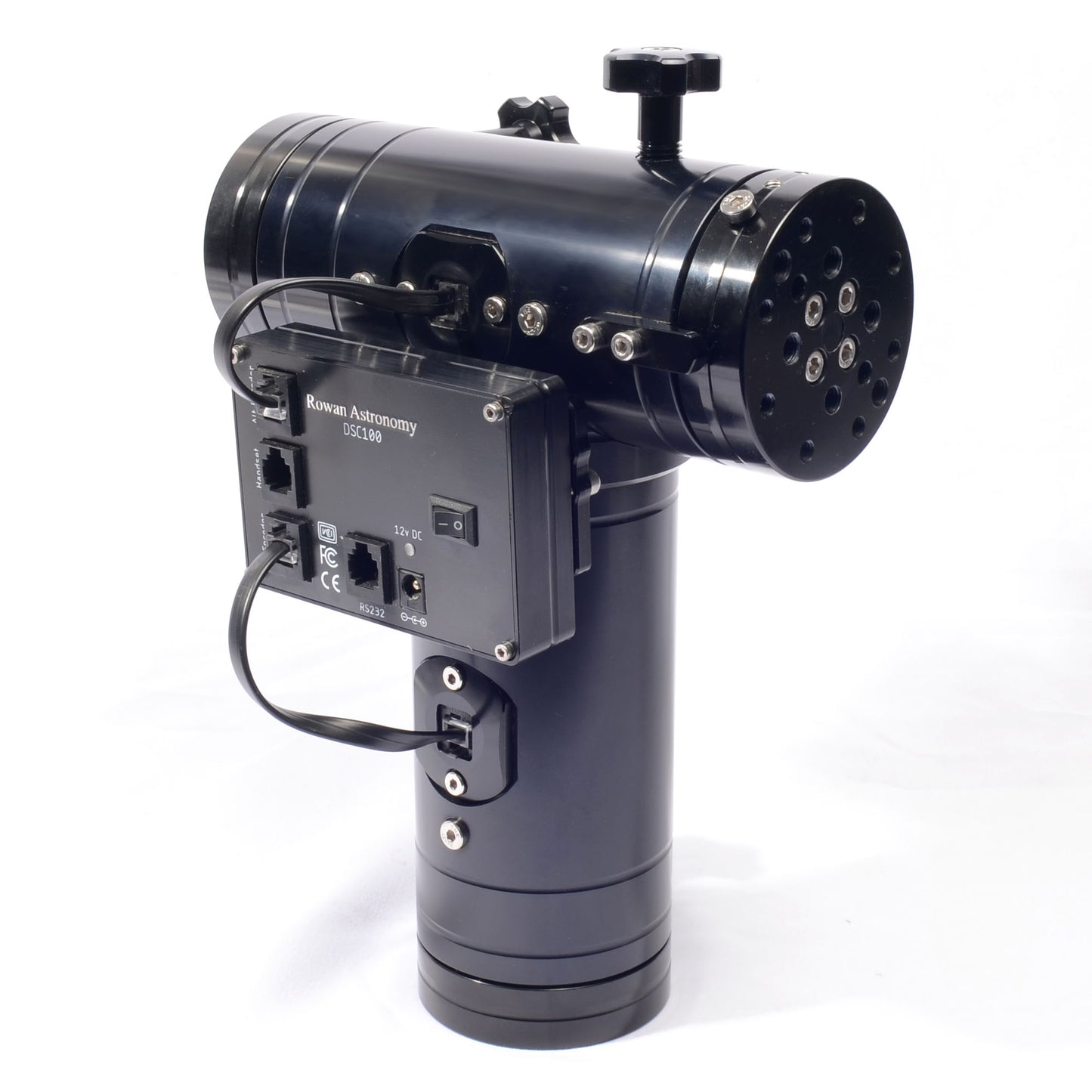

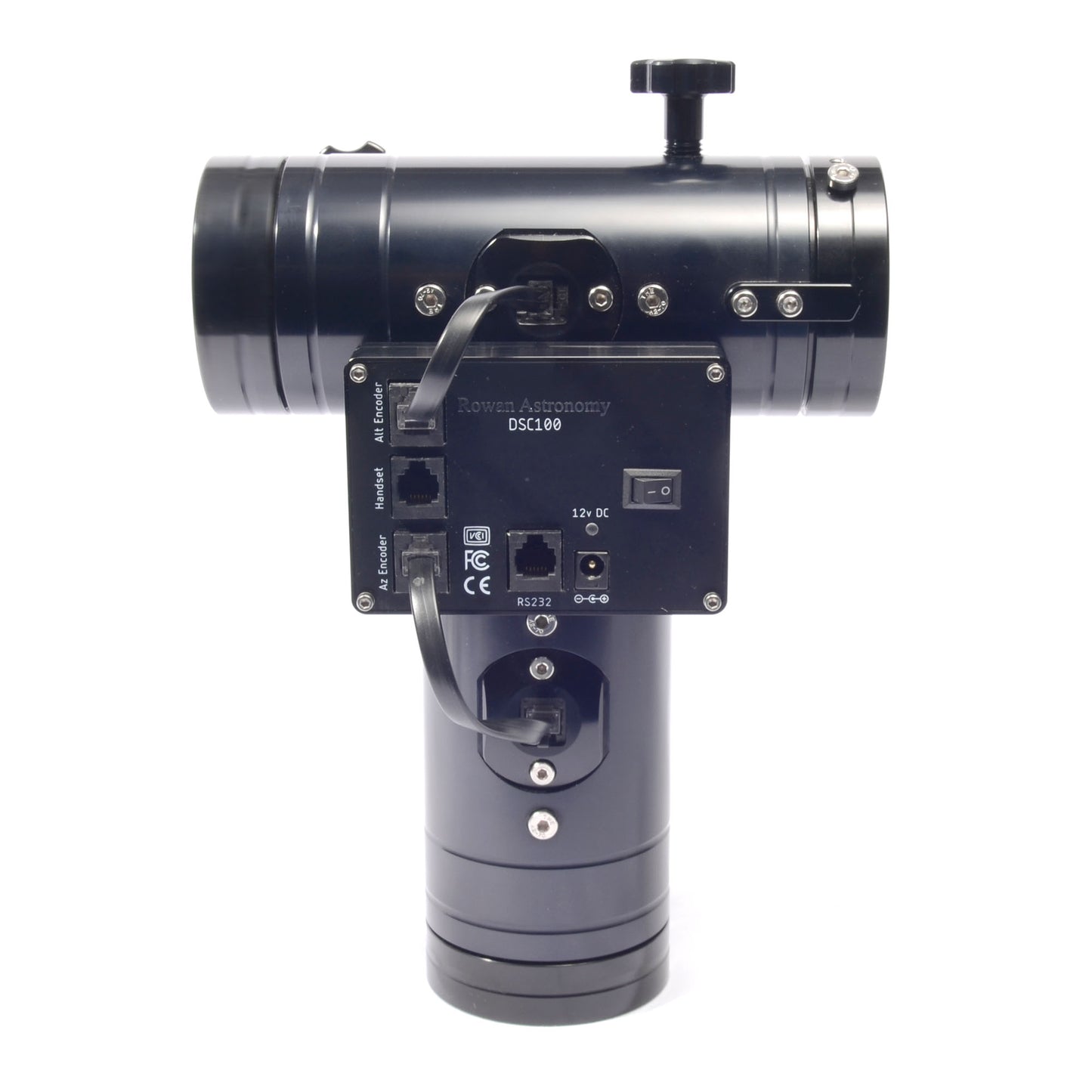

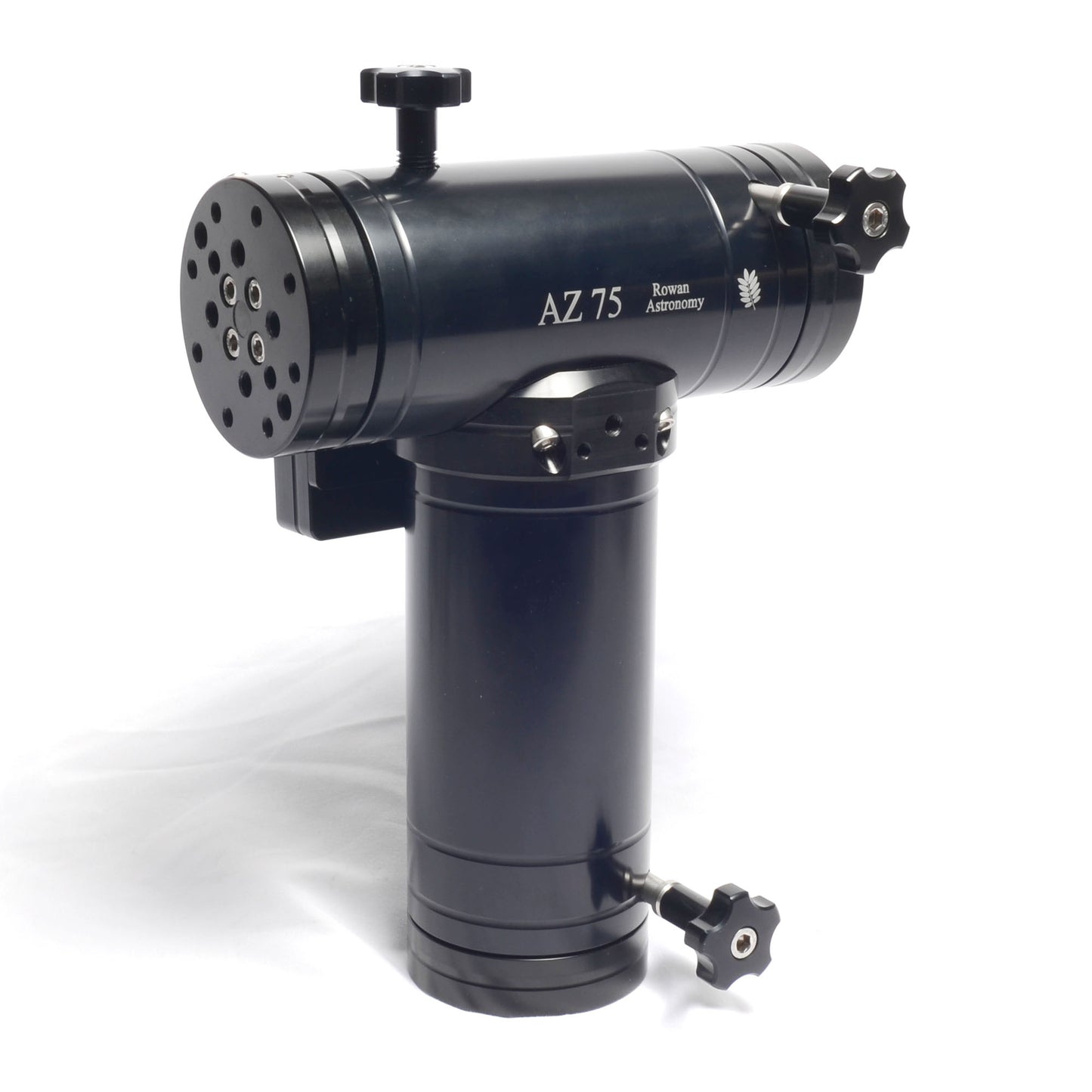

AZ75 Alt-Az Mount With Encoders Fitted + Rowan DSC100

AZ75 Alt-Az Mount With Encoders Fitted + Rowan DSC100

Regular price £1,400.00
Regular price Sale price £1,400.00
Sale Out of Stock
Shipping calculated at checkout.
Base Thread


Rowan Astronomy

View full details


CNC machined and black anodised finished and fitted with stainless steel hardware.
Features include Rowan DSC100 digital setting circle controller and Renishaw 122,000 step encoders.

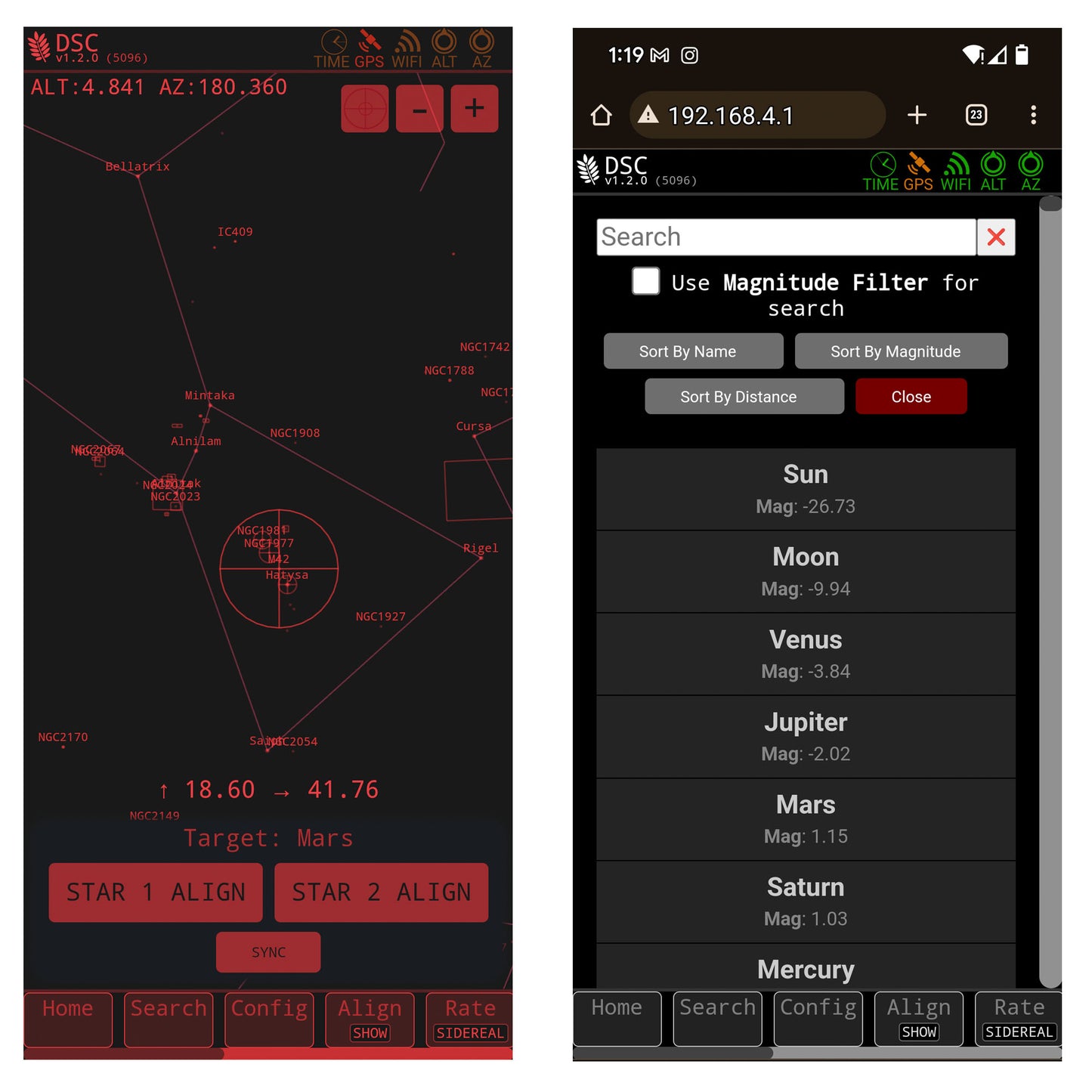

The DSC100 provides a wireless connection to a phone or tablet to display the built in planetarium or connection to Sky Safari

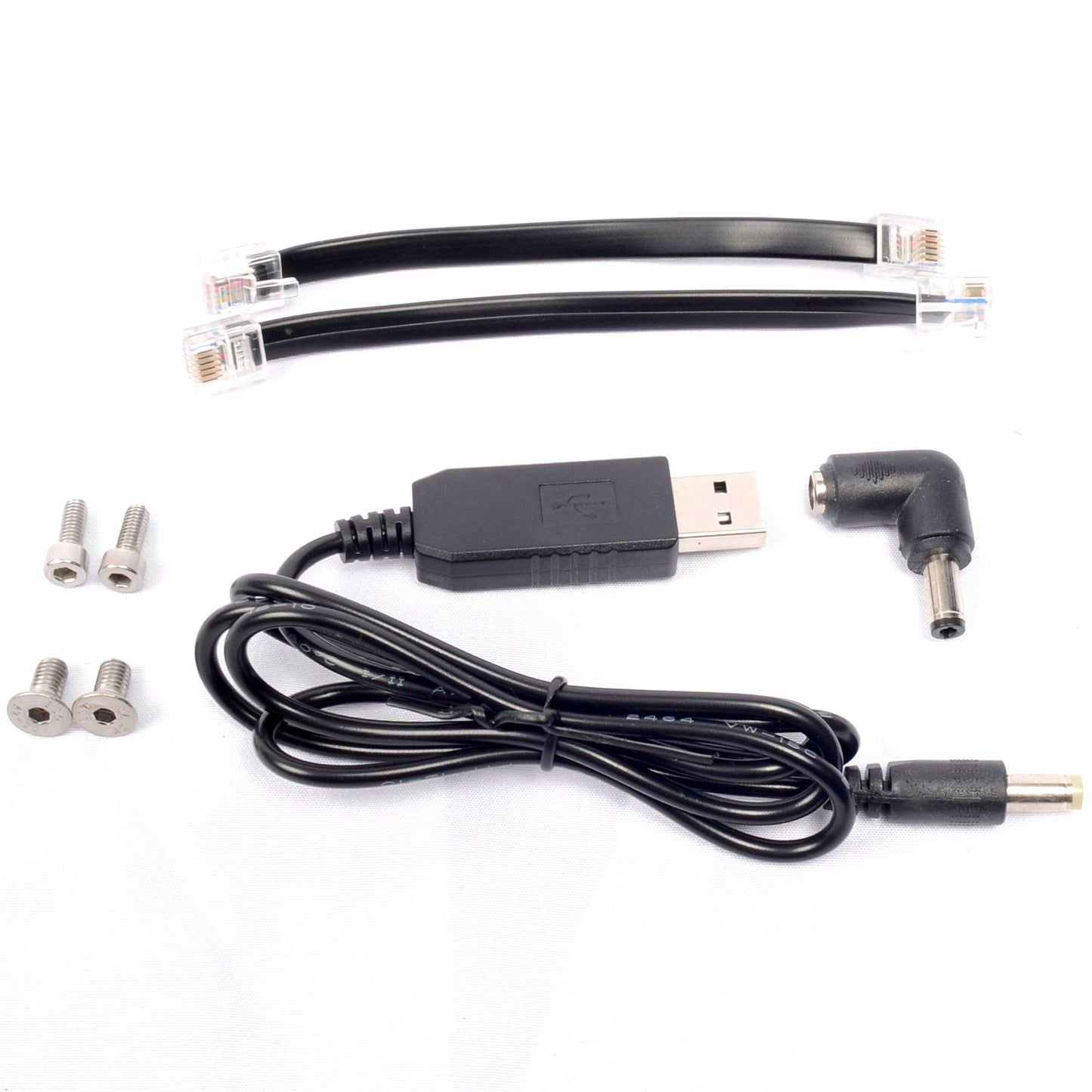

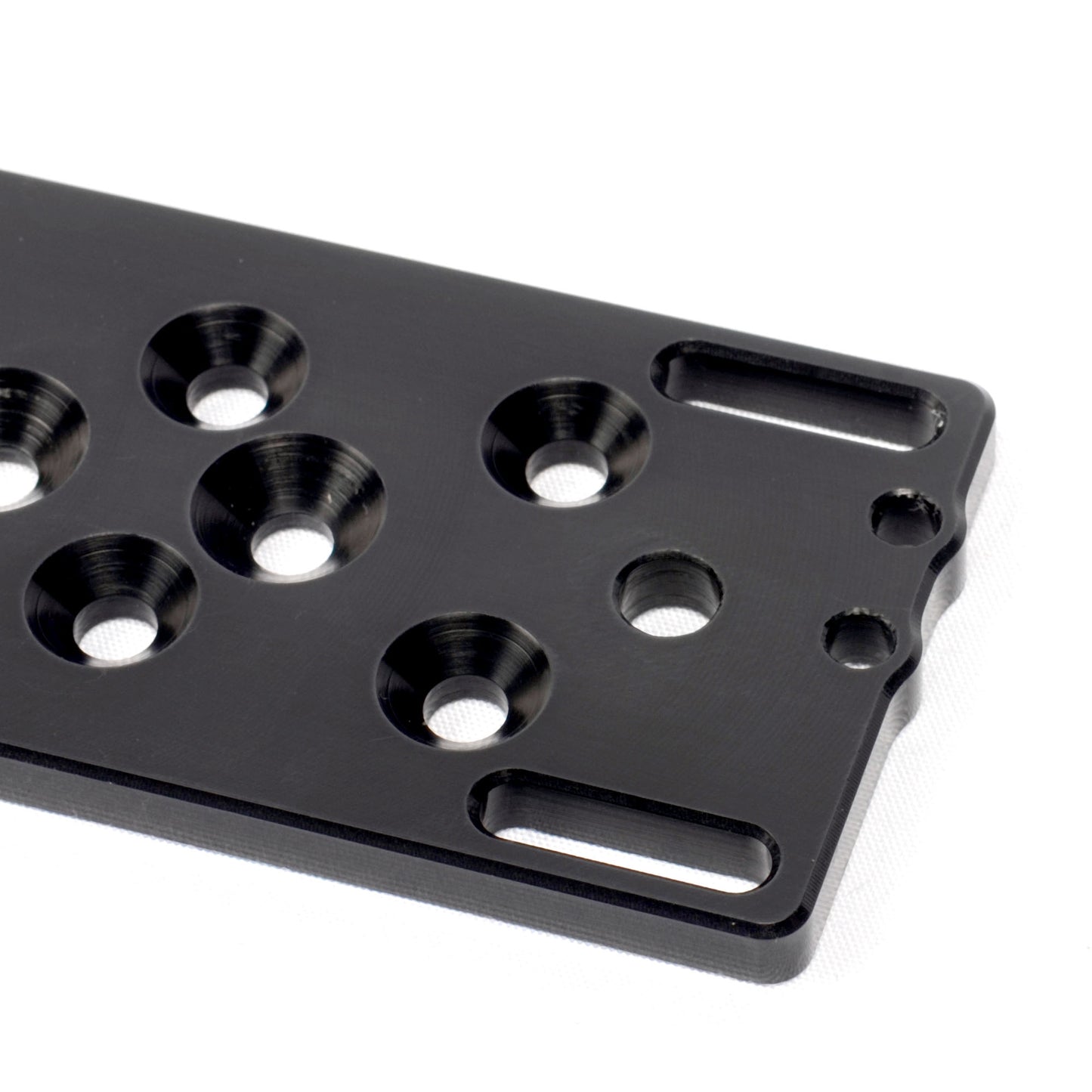

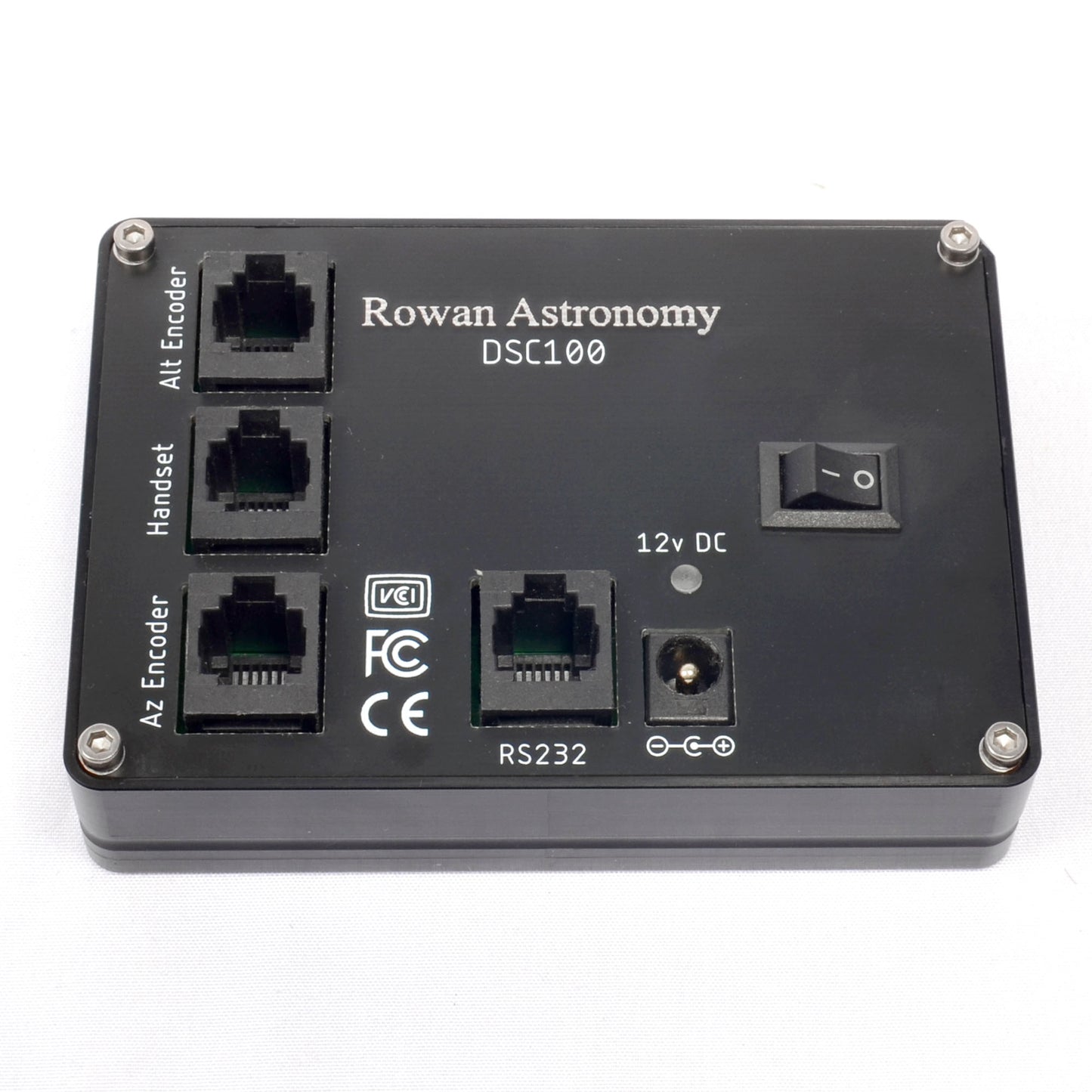

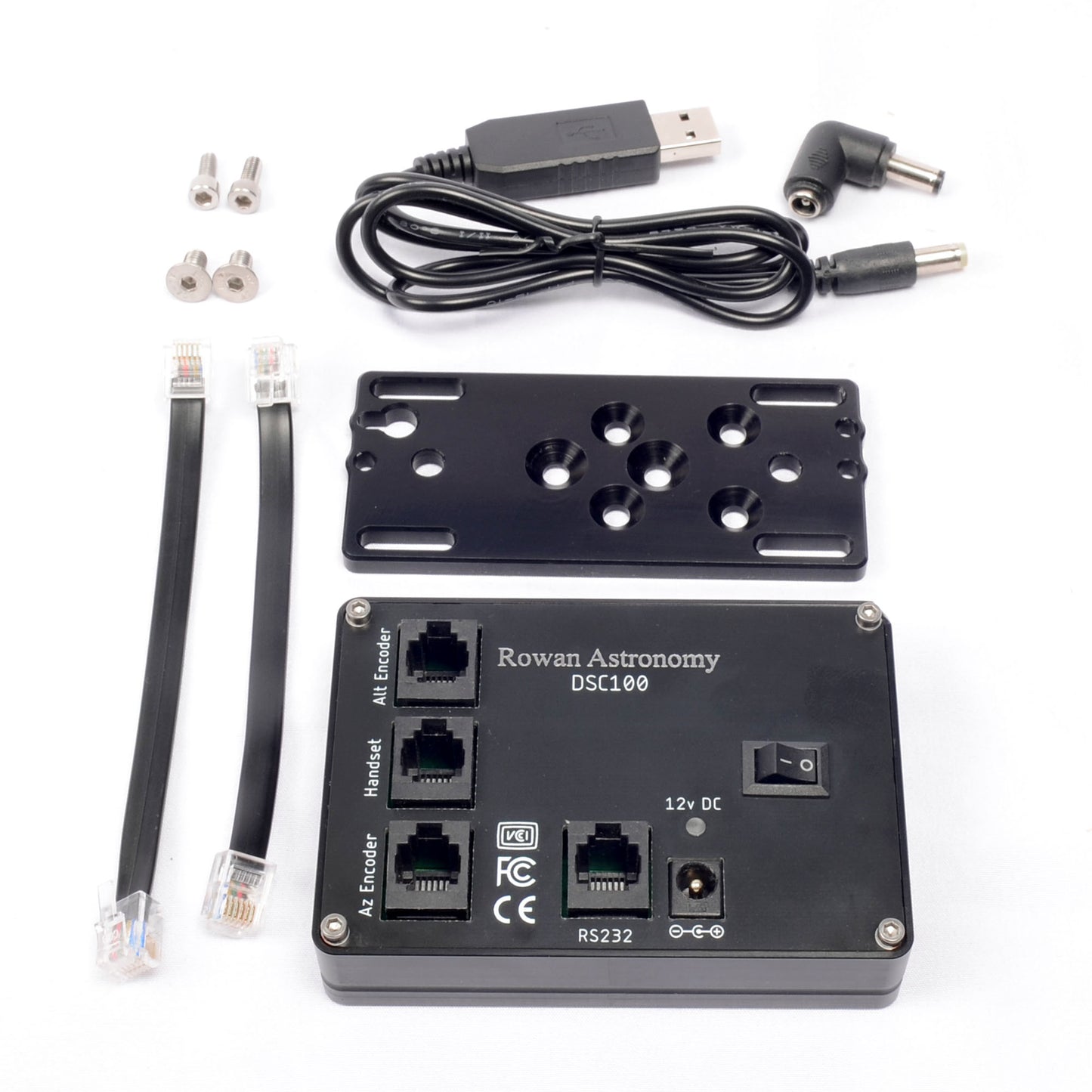

The DSC100 is supplied in a CNC machined aluminium enclosure, aluminium mounting bracket and 5-12vdc USB power converter cable.
A separate 5Vdc USB power pack or 12Vdc power supply is required.
Adjustable friction clutches on both axis for smooth push-to observing.
32mm diameter aluminium axis shafts supported in high quality ball and taper bearings.
Load capacity is 15 kg each side depending on scope length.
Top elevation axis lock for eyepiece changes.
Mount weight 4.1kg
Mount weight with 2 x V saddles 4.4kg
Mount base can be supplied with M12, M10 or 3/8" unc tapped hole to attach to tripods.
AZ75 is compatible with AZ100 saddles.

Options for the base mount.
Compact 'V' section saddle. 170mm long with 2 clamps.
Pan-tilt handle.
Counterweights and counterweight shaft.
